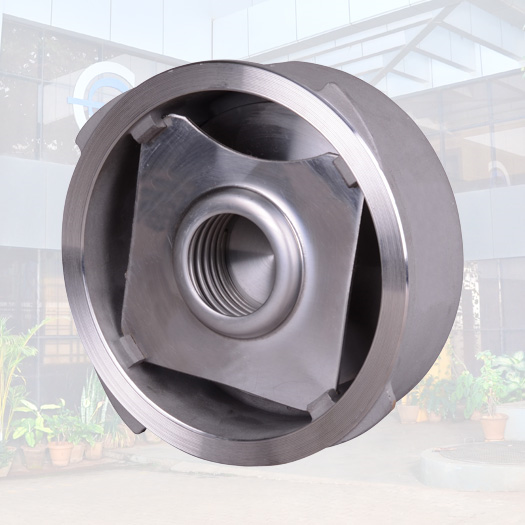

Non-Slam Check Valves

Non-Slam Check Valves are lift type non return valves used in pipelines to prevent back-flow of the fluid. Designed to fit between two flanges, these valves provide a compact installation when compared to the conventional flanged end check valves.

The Non-Slam Check Valves have short overall length in comparison with the standard flanged end Check Valves. The size and weight are considerably reduced. This offers great advantage for installation, handling, transportation and storing.

Typical Applications Are
Chemical Pharmaceutical Power Generation Textile Water Treatment Boilers Breweries Hot & cold water systems Heating systems Steam and condensate line Oil lines

(Not recommended for pulp lines and compressor delivery lines).

Technical Data | Design Features
Design Standard Manufacturer's Standard
Testing Standard API598
Face to Face Dimensions Manufacturer's Standard
Material ASTM A351 Gr. CF8M
Size Ranges
#150 DN 15 up to DN 150
#300 DN 15 up to DN 150

Valves can also be offered with IBR certification.
