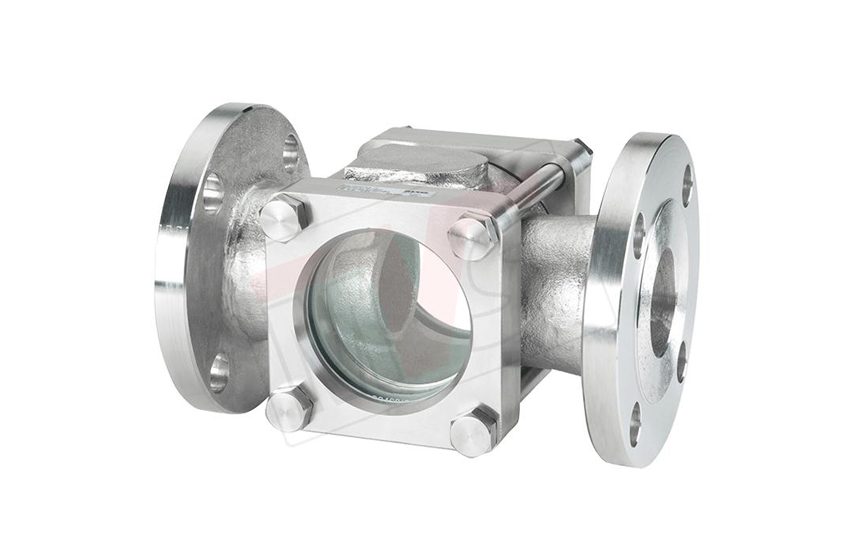

Sight Flow Indicator

Sight Flow Indicator

Sight Flow Indicators which are most commonly used for monitoring liquid flow in pipelines without compromising the integrity of the piping system. Visual Observation and supervision of the process flow stream are two of the main concerns. Single / double window constructions, Sight flow indicators are available in various figures & material. CS / SS made bodies with Toughened borosilicate Glass Window and Standard units in flanged / threaded connections provide immunity at higher temperature & pressures. These offer a quick, reliable and inexpensive way to affirm flow rate and direction, and monitor color and clarity in fluid lines.

Technical Specification :-

  Service:- Compatible gases and liquids.

  Wetted Materials :

  Window:- Tempered Glass

  Body:- Carbon steel or 316 SS

  Gasket:- Buna-N, Fluoroelastomer or PTFE

  MOC:- M.S/S.S/P.P/PTFE Lined in Fabricated or IC

  Type:-Glass window liquid flow Indication

  Temperature:- 350 Deg C

  Pressure:- up to 70 Kg/cm2 other on your request

  Line Size:- Up to 14 Inches (350 mm) other size is Customize

  Glass:- Toughened Glass

  Version:-Double / Single Window Viewing

  Connection:- Flaanged / Threaded.
