Side Mounted Level Switch

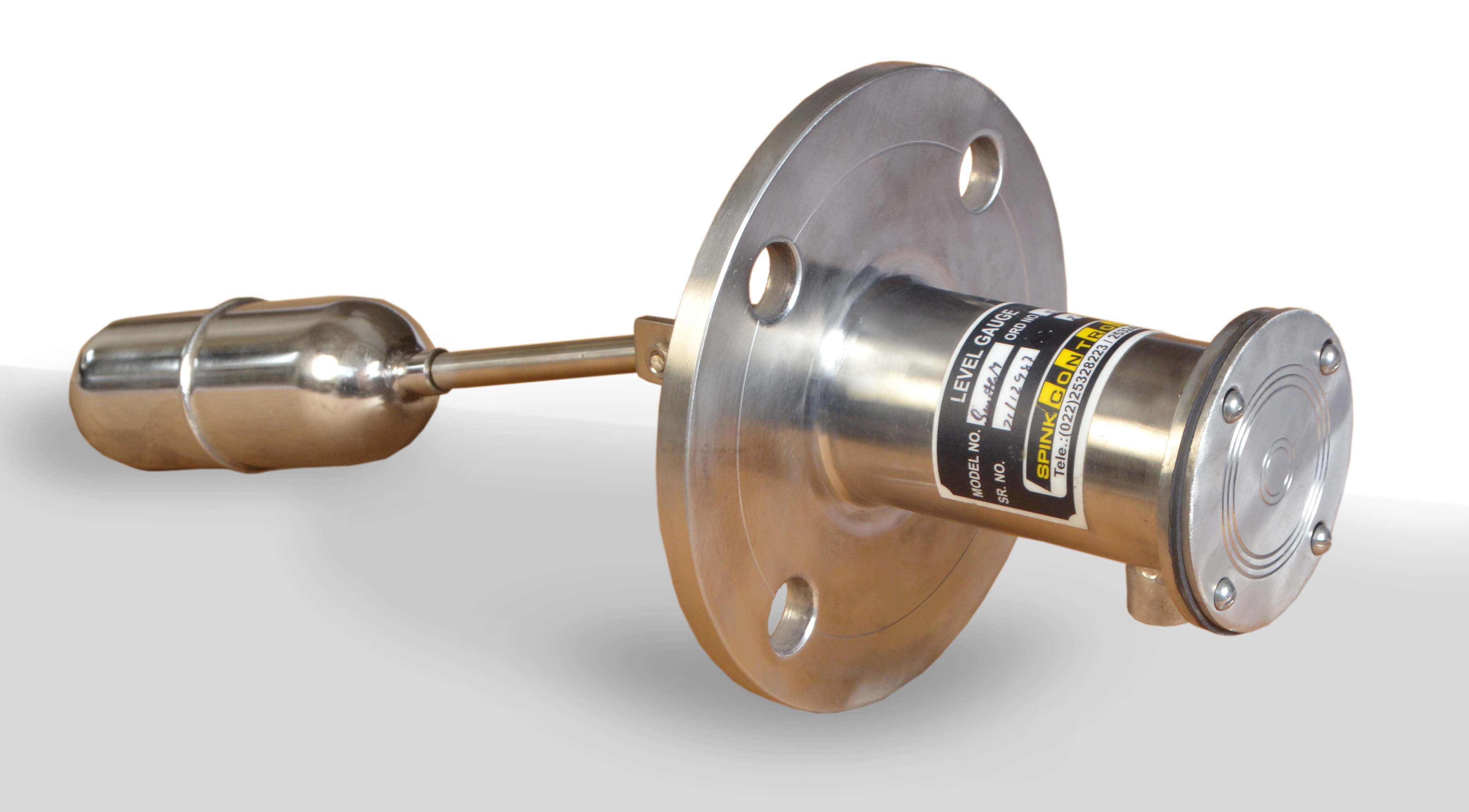

Side Mounted Level Switch as the liquid level in the tank changes, a horizontal magnetic float moves about a fulcrum in accordance with the level. The micro switch contracts (No/Nc) are accordingly activated providing an output for future industry processing. It is used to pump control, Alarm, Valve control or level indication. The float lever carries a permanent magnet which is repelled by similar magnet mounted in the switch housing. The magnet having the same pole direction towards each other are seperated by a non-magnetic diaphragm.

Technical Data | Design Features
Switch Type Micro Switch, SPDT
Switch Rating 240V AC, 5A
Enclosure Weather proof, Flame proof
MOC SS 304, SS 316, PP
Flange Standard Dia 120, 92 PCD Also available in ANSI, BIS, DIN Standard Flange
Float Dia 50,60,75, Non Standard
Max Temperature 150 Deg C (Higher Temperature on request)
Max Pressure 20 kg/cm2 (Higher Pressure on request)
