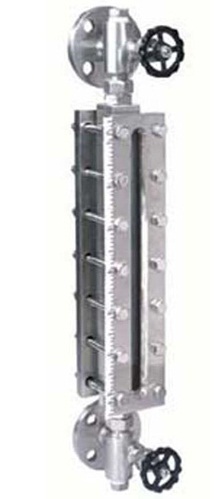

Reflex Level Gauge
Reflex glass level gauges working principle is based on the light refraction and reflection laws. Reflex glass level gauges use glasses having the face fitted towards the chamber shaped to have prismatic grooves with section angle of 90°. This glass is flat on the outside and on the inside has a series of prism grooves that face the vapor and liquid space. These are used for high pressure, high temperature and transparent liquid and corrosive. Because of property of reflection transparent liquid turns black and makes easy to read.
Technical Specification :-
Gauge Glass :- Toughened Borosilicate (30W) OR (34W)
Liquid Chamber:- CS / MS / SS 304 / SS 316
Cover Plate:- CS / MS / SS 304 / SS 316
Process Connection MOC :- CS / CS A 105 / SS 304 / SS 316
Process Connection:- 3/4" or 1" x ASME 150#, 300#, 600# RF
Process Connection Orientation:- Rear - rear
Isolation Valve:- CS A 105 or SS 316 x Offset Needle Valve
Vent:- 1/2" NPT
Plug Drain:- 1/2" NPT Globe or Gate or Needle Valve
CC Distance:- Up to 1000mm, other on request
Calibrated Scale:- Aluminum / SS304
Max. Operating Temperature:- 243 Deg C Max
Operating Pressure:- Upto 32 kg/cm2 Max.
Test Pressure:- upto 64 kg/cm2
Gasket:- CAF / Graphoil Reinforced SS 304 / 316 Reinforced
Bolts & Nuts:- A 193, Gr. B7, A194 Gr. 2H
